Hacking The Digital And Social device

for those who reside in a totalitarian, controlled and "chuffed" society, and also you want to be a hacker, you should hack the social system first. Being simply an engineer doesn't cut it, you need to be a hypocrite, dissident and a smuggler on the equal time. That's the motto of my very own story, which begins in Yugoslavia, and ends in Serbia. No, I didn't movement, I'm nevertheless in Belgrade, simplest the political borders have modified.

Half a century in the past, when i was in basic faculty, I found out the magical world of HAM radio. I grew to become a member of two beginner radio clubs, passed all assessments and received my licence and callsign, which become YU1OPC. i used to be delighted, however after five years, the celebration became over. What came about? smartly, sooner or later the police paid a consult with to all registered owners of CB Band machine and simply took that device away. no one knows why they did it, nonetheless it became probably off the books, as we in no way bought any written confirmation, and nobody ever saw their equipment again.

I wondered why they didn't take our HAM Radio gadgets as well, that have been as legal as any CB unit. I guess they didn't know how to use it… for his or her own own wants. Nothing will disuade me from calling it uniformed robbery.

basically, i was now not too unhappy about it. I lost simplest a jap 5W CB transceiver, but i was now not interested in HAM radio anymore. considering the first industrial HAM radio device looked available on the market, the profile of clients has changed dramatically – as an alternative of individuals who could build HAM contraptions with their personal fingers, now you had individuals who had satisfactory funds to buy them. probably i used to be overreacting, might be there were nonetheless a lot of fans, however the magic of my own enthusiasm become destroyed and i moved to digital know-how. I didn't be aware of that in very nearly two many years, the identical thing would happen once again with computers.

The "Pen and Paper" construction equipment

The migration from digital tubes to transistors became charming. this type of small tube, with a cold cathode and a low anode voltage, so low-priced and straightforward to use! I bought my first germanium transistors from my pocket money, and constructed… guess what? The flip-flop! i thought I invented it. How could I actually have prevalent that it had already been invented fifty years in the past?

simply a number of years after Intel's 4004, i used to be head over heels in love with microprocessors. I had ordered two Z80s from america, however soon found that one in every of them become inoperative – I most likely burned it by some means with out realizing it. nonetheless, I had the 2d one, so I may birth constructing my first microprocessor project. What should i use it for?

It changed into a simple query. i used to be all in favour of Conway's game Of life, and all the partitions in my room had been covered through papers with hand drawn telephone corporations, in a whole bunch of generations. there have been two consequences of my wall artwork: the indisputable fact that my folks and half of my chums concept that I had long gone crazy, and my first mission – game Of lifestyles, with a sixteen×16 LED matrix. The LEDs were so costly lower back then that I finalized the firmware with less than half of them, and crammed the matrix steadily within the coming months.

I didn't have a pc, so I assembled the firmware manually, by way of pen and paper, and then entered the code in my programmer, byte with the aid of byte, using rotary switches. however, the debugging method was surprisingly quick, as I had two 2708 EPROMs – truly, I had 4 to birth with, however burned (literally) two of them trying to debug my DIY EPROM programmer. So while considered one of them became within the UV eraser (constructed from an ancient sun-tanning lamp), I could debug the code and software a different one.

besides the fact that children weird it might probably appear to gather the code manually, I didn't recognize there can be an additional way to do it. And if you don't have an improved conception, there is no motive to be unsatisfied with the existing one. So, I went on and accomplished my game Of lifestyles. unluckily, I don't have it to any extent further, but I replicated it a couple of years later and it nevertheless runs in my workshop after well-nigh forty years – even the EPROM still maintains its content. possibly I should still describe it at the Hackaday.io tasks web page, as one of the ancient MPU DIY initiatives that nevertheless work?

No computers, Please

The very own computer systems of that time had been pretty expensive, nevertheless it became no longer the main problem. in case you lived in Yugoslavia, you quite simply couldn't buy them. It become no longer primarily forbidden, however you couldn't import anything else worth above 50 Deutschmarks. So I requested a pal of mine from the USA to break up my freshly ordered TRS-80 mannequin 1 into two instruments and ship them to me in separate packages, as inconspicuously as feasible. Having to reduce the ribbon cable that went between two PCBs (there turned into no connector) become frustrating but, after some hesitation, he grabbed a pair of scissors and went for it. a great while later, I acquired them tax-free, labeled as "technical junk", then "repaired" it. my very own desktop revolution had started.

The primary model had 4KB of dynamic RAM, so when I saw the commercials for the 16KB growth package, I puzzled who would ever want greater than 4KB! ironically, I soon discovered myself the use of now not 16, however 48KB, arranged in three piggyback layers. The main PCB received numerous hardware upgrades: Shift hold, 2×clock, single step mode, speaker, and an further EPROM with my very own disassembler and editor/assembler.

step by step, microcomputers had been spreading far and wide, but the govt nevertheless did not appreciate the talents of the brand new know-how. We requested for a brand new criminal medication of computer systems, but nothing had modified for a whole decade. Our main argument became that we want the technically skilled americans and younger utility specialists, and one flesh presser gave us the famous, greatly regularly occurring reply: "I've heard that americans will create self-programming computers, so we will need no programmers."

There turned into no other way however to proceed smuggling, bribing and hiding the device deep below the laundry in a suitcase.

laptop Animation from 1979

while i was a student on the school of Dramatic Arts in late 1970s, i was enchanted with the aid of desktop animation. I acted as somewhat a rookie in here, when you consider that I needed to beginning from scratch. I simply had certainly not even seen the device that turned into used for it. First I built the graphical interface, which contained ninety static RAMs 2114 (four×1Kbit), one Z80A and loads of glue logic. The resolution changed into four hundred×300, with a 3-bit monochromatic pixel. I borrowed a sixteen mm Bolex digicam which may function in a frame-by using-body mode, and built a solenoid trigger with corresponding computing device interface. I also wrote the animation application in simple, which might draw geometric shapes in a wireframe mode. everything changed into described in 3D, including the digital camera, which might flow, pan and zoom. All of that, including the amber display screen, became enclosed in a big picket container, which looked lots like a coffin, nevertheless it did the job of conserving the device from ambient gentle, and my ears from the noisy solenoids. The animation software was accomplished on my DIY TRS-80 clone with the 6MHz Z80B microprocessor, so one frame took a mere 10 minutes of rendering time, which translated to 24 hours for a regular shot.

I had shown the effect to my professor [Marko Babac], who changed into delighted. He asked me if it could ever be possible to animate human figures, however I referred to, with a lot of authority and self-confidence: "No manner"! He recommended to me that I put together a short television broadcast with a few animated examples. i used to be up for it, but I couldn't find any individual who become drawn to my technological wonder. The only topic being coated through the media on the time became President Tito's illness.

After 36 years, there are simplest two short shots left. I certainly not managed to discover somebody who could digitize them, so I used a flat-bed scanner and improvized backlight to digitize this one.

Galaksija: DIY Microcomputer from 1983

It turned into not feasible to purchase a microcomputer legally and no-one changed into making an attempt to supply it in Yugoslavia – equivalent complications have been confronted in all jap Bloc nations. everything pointed to us being stuck within the Stone Age on the matter. We had no computer magazines or other way to educate individuals about technology, so the media coverage became constrained to "a wierd contraption referred to as an digital brain, which can also play chess".

involving microcomputer initiatives of that point, the most expensive part was the video interface. I knew that the ZX81 and ZX Spectrum had ULA (uncommitted good judgment array) chips which generated video indicators aided through application, however I couldn't even dream of having that. So I needed to hack the microprocessor to make the video controller unit as simple as feasible, with the current TTL chips.

The Z80 microprocessor has one clear counter, referred to as the R register, which is used for dynamic reminiscence clean. it is simply incremented and output to the tackle bus after each guideline execution. It can be used to generate the quickest portion of the video signal, and the slower portion of video hardware could be quite simply replaced by using utility. So I crucial only 1 shift register pushed through a pixel clock and the charracter generator, and i saved on the video address counters, selectors, tri-state buffers and blanking common sense. That became an idea worth trying.

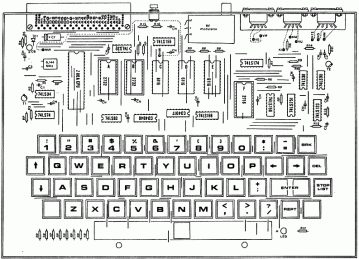

just a number of days later it worked perfectly, and that i started constructing the working equipment. reminiscence chips have been high priced, so I decided to use most effective 4KB (expandable to 8K) of ROM, and three×2K of static RAM. I stole the arithmetic routines from TRS-80 stage I primary, and began growing my own line editor and a simple interpreter.

The resulting fee/efficiency ratio became so first rate that I decided to put up it as a DIY assignment in a magazine. because the first concern of the primary Yugoslav computing device journal turned into well-nigh to get published, I met the author [Dejan Ristanovic], and made an settlement with him to let me write the DIY guide. [Jova Regasek], the editor of the challenge, insisted that the microcomputer name be "Galaksija" (Galaxy). In August 1983, Galaksija turned into introduced to the readers.

The magazine was named "Računari u vašoj kući" (computers to your domestic), and the release became scheduled for the very conclusion of December 1983. So I had 5 months to finalize the firmware, every so often with Dejan's support with the ordinary thought. It's magnificent how a lot that you could pack into four KB of EPROM house provided that you do your most appropriate to optimize the code! one in all many ideas I've described in my undertaking page is how to use more than 100% of program reminiscence.

a couple of days earlier than the closing date, i used to be on the editorial, talking to Jova and Dejan. Jova requested the intriguing question: how many readers will construct the microcomputer? I mentioned "might be 50", Dejan stated "I consider that there should be as a minimum 200", and Jova mentioned "Dont be silly, there may be greater than 500". We laughed at him, as it seemed too lots. but we've had more than 8000 letters from americans who constructed it. The desktop revolution had all started in my country.

within the equal year, my chum [Zoran Modli], a noted radio host, all started broadcasting programs for all current microcomputers in his weekly exhibit on the FM radio, and even on tv! there were no floppy nor difficult disks at the moment, so the most effective magnetic media had been compact cassettes. facts coding changed into carried out in audio latitude, which made it convenient for broadcasting. So we had the instant community (or as a minimum its predecessor) in 1983!

You might feel only the pirated video video games were broadcast, but really the gigantic majority have been customary courses written by fans. Zoran even created a digital magazine, which became broadcast in digital form.

in the next few years, there became about one new microcomputer in Yugoslavia every year. Most of them had been in restricted construction, and that they were predominantly Apple II clones with Microsoft fundamental.

warfare and No Peace

starting in 1991, Yugoslavia turned into disintegrated in the bloody battle. after I saw the armed forces Jeep below my window, I knew that I had no choice however to take my toothbrush, razor, walkman and a few clothes and let those guys take me to the quarters outdoor of city. the next day morning, my officer asked me about my existing job. after I noted that I deal with computer systems, he sent me to the headquarters, to take a look at an historic Apple II: "It's inoperative for more than a 12 months, no one could get it returned to life". I provided to try to fix it lower back at my workshop, and therefore turned into given a journey again with the aid of the equal Jeep.

home once again! It took me a couple of minutes to see that the best difficulty changed into within the video monitor. I disassembled it, changed a burned diode, and every thing worked exceptional. the next day the officer gave me again my identity and despatched me home, saying the words which I remember to today: "do something about yourself, i want you alive. Who is aware of when this peace of shit might get damaged once again".

Feeling like I aroused from sleep after deep snoozing, I joined a number of anti-battle and anti-Milosevic campaigns, writing articles against terror.

In 1995, after a few tragic events in my family, i used to be left alone with my two-12 months-historic son, no funds, and three days all through which we had to leave our flat. Then I did a very stupid component: I threw away just about all of my initiatives, together with the documentation and 5 prototypes of the Galaksija microcomputer.

Hope and Punishment

living all over conflict time become very worrying, so I sunk deep into my work to pull myself collectively. In 1998, I built a small handheld instrument with a single-chip MCU design. the usage of a PIC16F84, it turned into a common sense probe, single channel good judgment analyzer, 50 MHz frequency counter, RS 232 analyzer and a battery charging supervisor – all that in just 1K of code. I sent mail to Microchip and provided it as an software word. The reply was very encouraging: "we are very impressed with the degree of integration that you've got executed with the PIC16F84…". First they asked for one, then for three extra samples, a good way to use them as an illustration tool all over their conferences.

They promised me not best to put up the application be aware, but additionally exposure in US and European magazines, together with an respectable consultant reputation. requested about the compensation, I refused money and mentioned I'd rather have their in-circuit emulator.

I prepared an editorial and shortly the task appeared on Microchip's web page as AN689. finally, there changed into a hope that at last I shall rise, after all the pitfalls and disappointments. however only a couple of weeks later, I received the following message from Microchip:

"obviously, the USA has some category of a change embargo in opposition t Yugoslavia…" and so forth. They have been apologetic but had been nevertheless definite that some sort of an arrangement may be made…

No magazine articles, no consultant popularity, no in-circuit emulator. Even the utility word changed into removed from the site.

i was pondering that my success couldn't be any worse than this, but best just a few months later Serbia turned into attacked via NATO and intensively bombed for seventy eight days. with no single day off, 24 hours a day, we have been being attentive to the war sirens, supersonic blasts, guided missiles and well-known detonations over the city.

technology and the Legacy of five decades

In 2006, after several mails, I have finally bought my In-Circuit Debuggers from Microchip and the utility observe became put lower back in place. I strongly consider they did everything they may, so i will't definitely blame them. I stilll just like the PIC platform and that i've never stopped using it for my medium-scale projects.

For a very long time, i was paying attention to "specialists" telling me my Galaksija laptop is X times slower than the up to date notebook and Y instances slower than their smartphone. recently although, it looks like we entered a sort of a renaissance of technological tradition. americans develop nostalgic and extra appreciative of older stuff. Now there are a lot of retro desktop emulators for computing device, including a Galaxy emulator, and also the single chip FPGA reproduction named μGalaksija, created bu [Dušan Grujić].

i was honored with the aid of the Muzej Nauke i Tehnike (Museum of Science and technology) in Belgrade, when i was requested to donate a pattern of the Galaksija desktop. How am i able to donate it, if I don't have it? happily, I discovered one forgotten prototype in my cellar, cleaned it and now it's part of the museum exhibition.

The closing decade of the twentieth century became a disaster for my nation, however the worst hurt changed into done to the people's minds. Corruption spread, social values suffered probably the most. not in contrast to within the middle ages, quite a few clairvoyants, prophets, quacks and pseudoscientists flooded the media, and there become no longer a single voice from the aspect of rationale.

So i assumed I might are attempting to hack the system once again. I wrote and published two books and loads of newspaper articles and light-weight fiction, promoting a skeptical view on the paranormal phenomena. And it labored, at the least partly. i was invited to many television suggests, and a undeniable number of intellectuals begun to raise their voices in opposition t the up to date superstition. Some deceivers and quacks were even jailed, i admire to think, at the least partly as a result of my efforts.

sadly, the '90s crisis left us with some critical penalties. a lot of young scientists and consultants, that have been the more advantageous part of the technology, left the nation. One well known flesh presser talked about that there's no harm accomplished, as all through the length we additionally bought an equal variety of refugees. Numerically speaking, we are the identical.

here is how I see the consequences of that brain drain. In 1960, Yugoslavia turned into one in all six nations which had its own computer, CER-10. It turned into created by our engineers at the Mihailo Pupin Institute, which is barely just a few hundred meters from my home. wager what those "scientists" are producing nowadays? Magnetic slippers! well, you can also have pseudoscience to your media, but we've long gone a step additional – we have the pseudoscience in our science!

nonetheless, one gets used to everything. At this aspect i'd be shocked if things became out any better. As for myself, all i need are 4 walls and peace, so i will do my work and create. I don't need a lot of money, that's why my projects are open. I not ever counted them, however I wager that I have between 50 and a hundred open initiatives posted in desktop magazines.

ultimate year I met [Mitch Altman], who's regular not most effective for tv-B-long gone, however also for instructing introductory electronics workshops worldwide. after we were talking concerning the artistic work in time-honored, I told him my problem is that I fall in love with each of my projects, and he laughed and observed "What a nice difficulty to have"! He become correct, it's the absolute best problem, and that's why my projects are open – in the event you're in love, you then need to inform it to the entire world and to reveal the object of your love to every person. might be you won't get prosperous that approach, but you'll most likely spend the existence worth living.

[Illustration by Bob Zivkovic]

​​Voja Antonic works as a freelance microcontroller engineer in Belgrade. His first microprocessor tasks, based on Z80, date returned to 1977, just a couple of years after the appearance of the primary Intel's 4004. He assembled the firmware manually, through pen and paper. In 1983, he published his fashioned DIY microcomputer mission known as Galaksija, which was built with the aid of around 8000 lovers in the former Yugoslavia. thus far he has posted more than 50 projects, normally in response to microcontrollers, and launched all of them in the public area.
